Graves Motorsports Kawasaki Teryx KRX 1000 Full Titanium Exhaust System EXK-20KRX1-FTT

Graves Motorsports Kawasaki Teryx KRX 1000 Full Titanium Exhaust System
Part Number: EXK-20KRX1-FTT

A complete race-developed exhaust from Graves Motorsports, the team behind 30 AMA National Championships and multiple Pro UTV titles. Every dimension – tube diameter, core size and silencer length – is tuned for power across the full throttle and RPM range on the KRX 1000.

Features

• 1.0 mm wall, high-heat-grade titanium tubing rated to 800°C (1472°F)
• Titanium silencer sleeve with carbon fiber end cap and carbon exit cover

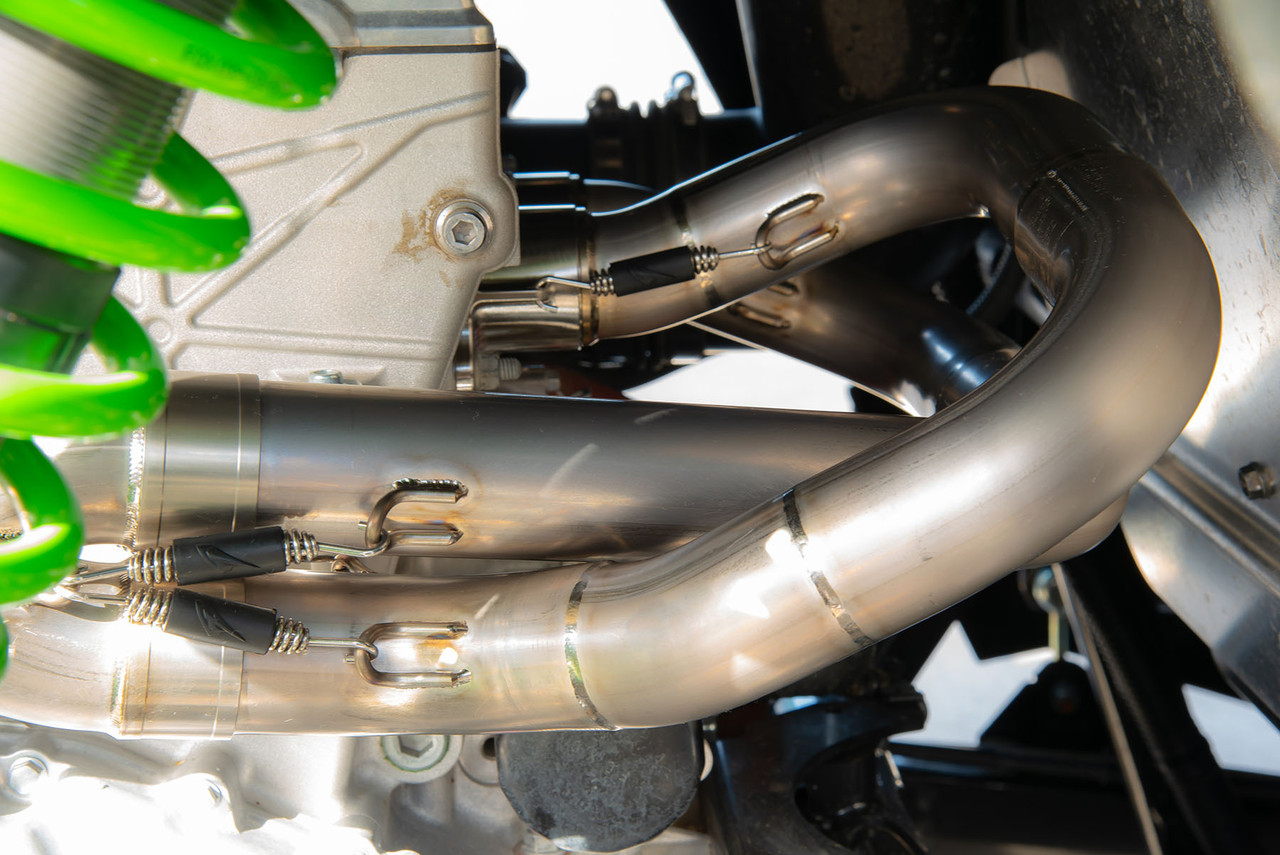

• Stainless steel CNC header manifold
• Billet 6061-T651 aluminum mounting bracket, hard anodized
• 4 mm titanium spring tabs and titanium silencer bands
• Single O2 (lambda) bung for data logging or dyno tuning
• Weighs 11.3 lbs vs. 31.8 lbs stock – over 20 lbs saved

Sound Levels

• Stock: 81.5 dB idle / 93 dB @ 4,000 rpm
• Graves system: 91 dB idle / 104 dB @ 4,000 rpm
• Graves system with spark arrestor: 90 dB idle / 102 dB @ 4,000 rpm

Fitment

• Kawasaki Teryx KRX 1000 – 2020 and newer (all 2-seat versions)

Notes

• Forestry-approved spark arrestor / quiet insert sold separately.
• Flash tuning (FTEcu kit) recommended – sold separately.

For closed-course competition use only. Not legal for sale or use in California on any pollution-controlled motor vehicle.
