TB Parts TB 178cc Bore kit, 67mm - Kawasaki KLX110/ KLX110L/ SUZUKI DRZ110 TBW9145
TB 178cc Bore kit, 67mm
Fits Kawasaki KLX110/ KLX110L/ SUZUKI DRZ110
TBW9145
TB 178cc Bore kit, 67mm – KLX110 All Models

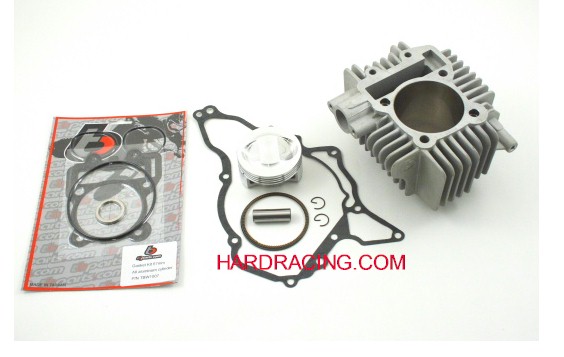

178cc Big Bore Performance Kit (67mm):
The all aluminum ceramic coated cylinder is lighter than a steel sleeved aluminum cylinder, reduces friction (increasing power), improves sealing, and provides better heat transfer (runs and cools down quicker). This new cylinder along with a complete head gasket kit and domed piston will provide the extra power to make yourKLX110 or DRZ110 a lot more fun to ride! These are high quality parts and definitely will dramatically increase the power and fun factor on your bike!
Features:
– Ceramic coated all aluminum cylinder (no steel sleeve)
– Lightweight high compression domed 67mm piston with rings, pin, & clips
– Head gasket kit – Now includes the cylinder head o-ring set and an exhaust gasket.
Important Notes:
This big bore kit is recommended for use only with our V2 Race Head. For all other applications, please check clearances.
Cylinder Skirt is 69×15.1mm, bore case to at least 70x16mm
Installation requires engine disassembly and case boring. Therefore, we highly recommend a professional technician install this kit and the cases bored by a reputable machine shop. The parts are installed in the same manner as the OEM parts. Also, while the engine is disassembled, you might consider the following options:
– Output shaft – a must if you have a 2007 or older model
– 55mm Stroker Crank – this will increase the engine displacement to 194cc with this 178 kit
** Kit should be installed by a certified mechanic to ensure proper function.
Improper installation could result in catastrophic engine failure.
